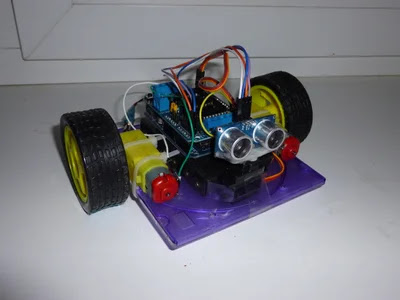

Arduino HC-SR04 Ultrasonic Rover

Simple Arduno Rover with HC-SR04 Ultrasonic sensor.

Step 1:

YOU will need to build this:

HC-SR04 Ultrasonic sensor

Battery holder for 6 AA batteries

6 AA batteries

Arduino UNO (I use UNO R2)

Motor Shield for Arduino (L293)

9g Servo

2 gear motors with wheels

CD box

4 male-to-male cables

4 female-to-female cables

few cable ties

I buy all components for this rover on ebay.

First you will need 2pcs Plastic Tire Wheel + DC 6V Gear Motor 48:1.

I solder 2 male-to-male cables and 104 capacitors.

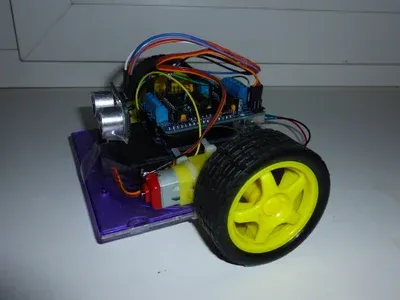

I used slim CD box as a chassis, I made 2 holes on each side of CD box and then fixed gear motors with cable tie.

Step 2:

You can see all the components you need on this photo.

1. HC-SR04 Ultrasonic sensor
2. Battery holder for 6 AA batteries
3. 6 AA batteries
4. Arduino UNO (I use UNO R2)
5. Motor Shield for Arduino (L293)
6. 9g Servo
7. 2 gear motors with wheels on CD box chassis.
8. 4 male-to-male cables
9. 4 female-to-female cables
10. few cable ties

Step 3:

Сonnection scheme is very easy.

1.  Connect 9g servo to SERVO_2 pins on motorshield
2. Left motor to M4
3. Right motor to M1
4. Echo - pin A4
5. Trig - pin A5
6. Vcc - pin +5 ; Gnd - Gnd

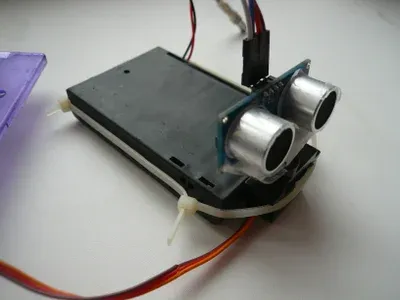

I fix servo on battery box with cable tie

Step 4:

AFMotor.cpp

AFMotor.h

AFMotor.h
